NA4903-RS

Send Inquiry

Description
Technical diameters

NA49...RS Series

NA49...RS Series

Bearing No. :NA4903-RS

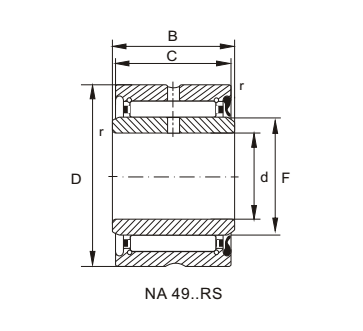

Boundary dimensions（mm）

d :17

Fw(F) :22

D :30

C :13

B :14

Basic load ratings(kN)

Dynamic(Cr) :6050

Static(Cor) :10100

Limiting speed(rpm )

Oil :9000

Mass

Kg :40
