| Inquiry | Bearing Number | Dimensions | Chamfer(min) | Basic Load Rating | Limiting Speed (X1000 RPM) | Steel ball | Weight(Kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

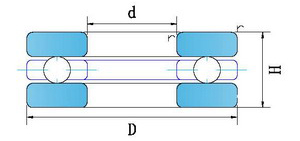

| d | D | d1 | D1 | H | (rs) | Cr(N) | Cor(N) | Grease | Oil | Number | Diameter | |||
| F2-6 | 2mm | 6mm | 3mm | 6mm | 2mm | 0.1 | 117 | 83 | 16 | 13 | 6 | 1 | 0.6 | |
| F2x-7 | 2.5mm | 7mm | 3.5mm | 7mm | 2.5mm | 0.1 | 156 | 117 | 15 | 12 | 6 | 1.2 | 0.9 | |
| F3-8 | 3mm | 8mm | 3.5mm | 7.8mm | 3.2mm | 0.1 | 600 | 480 | 11 | 15 | 6 | 1.588 | 0.6 | |
| F4-9 | 4mm | 9mm | 4mm | 8.8mm | 4.2mm | 0.15 | 800 | 520 | 8 | 12 | 6 | 1.588 | 1.5 | |
| F4-10 | 4mm | 10mm | 4mm | 9.8mm | 4.2mm | 0.15 | 658 | 580 | 6 | 10 | 6 | 1.588 | 2 | |
| F5-11 | 5mm | 11mm | 4.5mm | 10.8mm | 5.2mm | 0.15 | 988 | 880 | 5 | 8 | 7 | 1.588 | 2.4 | |
| F6-12 | 6mm | 12mm | 4.5mm | 11.8mm | 6.2mm | 0.15 | 1600 | 1255 | 5 | 7 | 8 | 2 | 2.5 | |
| F7-15 | 7mm | 15mm | 5mm | 14.8mm | 7.2mm | 0.2 | 2200 | 2000 | 3.6 | 7.1 | 8 | 2.5 | 4.4 | |
| F8-16 | 8mm | 16mm | 5mm | 15.8mm | 8.2mm | 0.2 | 2500 | 3000 | 4 | 8 | 9 | 3 | 5 | |
| F10-18 | 10mm | 18mm | 5.5mm | 17.8mm | 10.2mm | 0.2 | 2230 | 2721 | 2.5 | 4.5 | 10 | 2.381 | 6 | |
