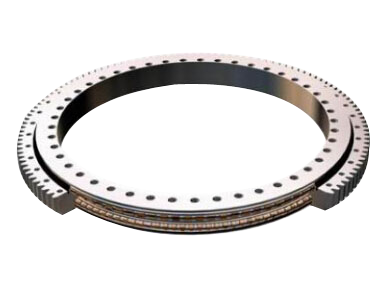

Single-row Four Point Contact Ball Slewing Bearing (External gear type)

Single-row Four Point Contact Ball Slewing Bearing (External gear type)

Single-row Four Point Contact Ball Slewing Bearing (External gear type)

Send Inquiry
PDF
  • Single-row Four Point Contact Ball Slewing Bearing (External gear type)
  • Single-row Four Point Contact Ball Slewing Bearing (External gear type)
InquiryDesignations Boundary Dimension （mm）Bolt Hole Diameter （mm）Weight
Da DiH LaLina3)ni3)mz（Kg）
E.505.20.00.C 503.3 304 56 455 332 10 12 5 99 29.5
E.650.20.00.C 640 434 56 585 462 14 14 6 105 41.5
E.750.20.00.C 742 534 56 685 562 16 16 6 122 48.5
E.850.20.00.C 838 634 56 785 662 18 16 6 138 54.5
E.950.20.00.C 950 734 56 885 762 18 18 8 117 65.5
E.1050.20.00.C 1046 834 56 985 862 20 20 8 129 71.5
E.1200.20.00.C 1198 984 56 1135 1012 22 20 8 148 83.5
