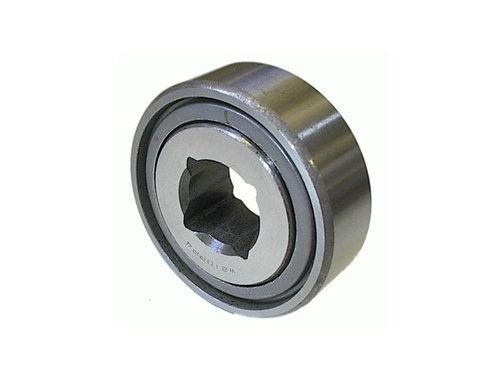

Round Bore And Spherical O.D.Type

Round Bore And Spherical O.D.Type

Send Inquiry

Description
Technical diameters

Inquiry	Bearing Number	Boundary dimensions(in)				Basic load ratings(N)	Mass(Kg)
Inquiry	Bearing Number	d	D	Bi	Be	Cr	(Approx.)
	GW208PPB6	1.188	3.1496	1.437	0.708	26200	0.72
	GW209PPB11	1.7811	3.3464	1.437	0.866	29200	0.64
	GW209PPB2	1.7717	3.3464	1.189	1.189	29200	0.65
	GW209PPB4	1.535	3.3464	1.189	1.189	29200	0.75
	GW210PPB2	1.938	3.5433	1.189	1.189	31500	0.71
	GW210PPB5	1.785	3.5433	1.189	1.189	31500	0.79
	GW211PPB10	1.938	3.937	1.311	1.311	39100	1.02
	GW211PPB2	2.188	3.937	1.311	1.311	39100	0.97
	GW211PPB9	2.194	3.937	1.311	0.984	39100	0.92
	W208PPB2	1.5005	3.1496	1.689	0.708	26200	0.72
	W208PPB23	1.5005	3.1496	1.689	1.189	26200	0.68
	W208PPB4	1.188	3.1496	1.189	1.189	26200	0.72
	W208PPB6	1.188	3.1496	1.437	0.708	26200	0.72
	W208PPB7	1	3.1496	1.189	0.708	26200	0.64
	W209PPB11	1.7811	3.3464	1.437	0.866	29200	0.64
	W209PPB2	1.7717	3.3464	1.189	1.189	29200	0.65
	W209PPB4	1.535	3.3464	1.189	1.189	29200	0.75
	W210PPB2	1.938	3.5433	1.189	1.189	31500	0.71
	W210PPB5	1.785	3.5433	1.189	1.189	31500	0.79
	W211PPB2	2.188	3.937	1.311	1.311	39100	0.97
