NKIS Series

NKIS Series

Send Inquiry

Description
Technical diameters

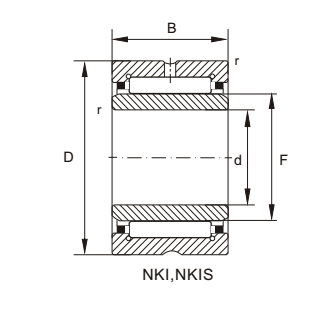

Inquiry	Bearing No.	Boundary dimensions（mm）				Basic load ratings(kN)		Limiting speed(rpm )	Mass
Inquiry	Bearing No.	d	Fw	D	C	Dynamic(Cr)	Static(Cor)	Oil	Kg
	NKIS12	12	18	30	16	16000	17000	20000	58
	NKIS15	15	22	35	20	23500	24000	17000	90
	NKIS20	20	28	42	20	16500	35500	14000	119
	NKIS25	25	32	47	22	32000	55000	12500	160
	NKIS35	35	43	58	22	33000	56000	9500	210
	NKIS45	45	55	72	22	43000	71000	7500	306
	NKIS50	50	60	80	28	60000	95000	7200	510
	NKIS60	60	70	90	28	65000	110000	6300	550
