SPOS Series

SPOS28

Send Inquiry

Description
Technical diameters

SPOS Series

SPOS Series

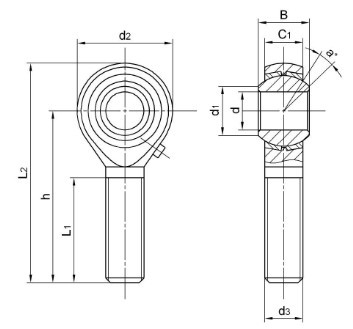

Bearing Designation :SPOS28

Dimensions mm

d H7 :28

B :35

C1 :24

d1 :32.29

d2 :66

d3-6g :M27x2

h :103

L1 :62

L2 :136

Ball Diameter :47.63

Load Rating (KN)

Dynamic Load :46.1

Static load :88.7

Weight

≈Kg :0.875
