SCOS Series

SCOS22

Send Inquiry

Description
Technical diameters

SCOS Series

SCOS Series

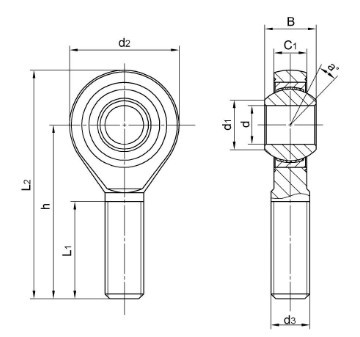

Bearing Designation :SCOS22

Dimensions mm

d H7 :22

B :28

C1 :20

d1 :25.8

d2 :54

d3-6g :M22x1.5

h :84

L1 :48

L2 :112

Ball Diameter :38.1

Load Rating (KN)

Dynamic Load :42.2

Static load :57

Weight

≈Kg :0.48
