SA207-23

Send Inquiry

Description
Technical diameters

SA Series

SA Series

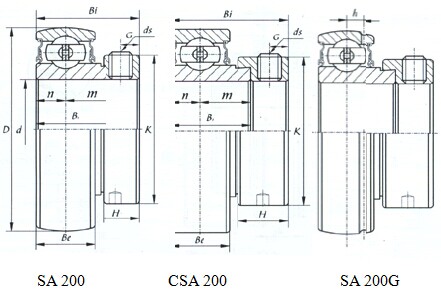

Bearing No. :SA207-23

d

(mm) :36.513

(in.) :1 7/16

Dimensions（mm）

D :72

Bi :38.9

Be :17

B1 :25.4

n :9.5

K :55.6

H :17.5

G :6.5

ds :5/16-24UNF
