LFR 5302 KDD

Send Inquiry

Description
Technical diameters

LFR Series

LFR Series

Wheel Type

Germany :LFR 5302 KDD

Italy :LFR5302KDD

Domestic model :R 5302-10 ZZ

Weight

(g) :163

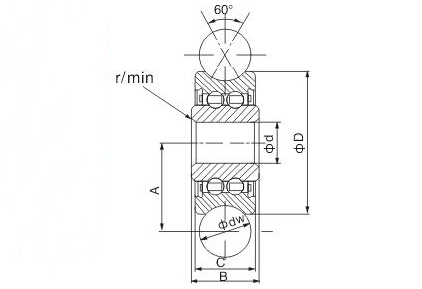

Dimensions (mm)

dw :10

d :15

D :47

C :19

B :19

A :26.7

rs :1

Load(KN)

Cw :16.2

Cow :9.2
