GE...FW-2RS

GE5FW

Send Inquiry

Description
Technical diameters

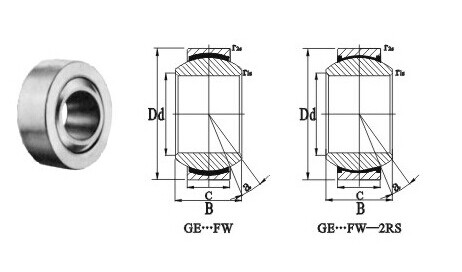

GE...FW-2RS

GE...FW-2RS

Designation :GE5FW

Dimensions (mm)

d :5

D :16

B :9

C :5

r1s min :0.3

r2s min :0.3

Load Ratings

C :5.8

CO :14

α· ≈ :21

Weight (kg) :0.006
