68 Thin-wall Series

6805

Send Inquiry

Description
Technical diameters

68 Thin-wall Series

68 Thin-wall Series

Bearing NO. :6805

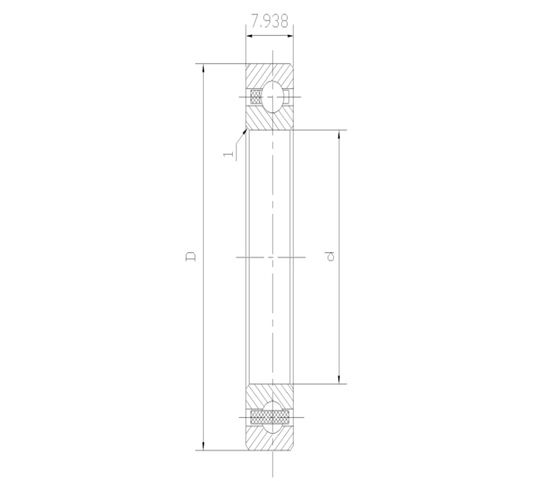

Shape Dimension

d(mm) :25

d(inch) :0.9843

D(mm) :37

D(inch) :1.4567

B(mm) :7

B(inch) :0.2756

r min(mm) :0.3

r min(inch) :0.0118

Basic Load Rating(N)

Dynamic( Cr) :3680

Static( Cor) :2630

Weight

(kg) :0.0220
