31328XJ2

31300 Series

31328XJ2

  • 31300 Series
  • 31300 Series
Designation :31328XJ2
Principal dimensions(mm)
d1 :140
D :300
B :77
Basic load ratings(KN)
dyc(Cr) :693
stc(Cor) :900
Pu :88
Speed ratings(rpm)
Speed Ratings :1500
Limiting Speed :2200
Weight(Kg) :24,5
ISO335
Dimensions (ABMA) :7GB

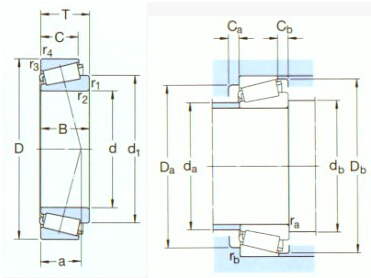

Dimensions (mm)
d :140
d1~ :219
B :70
C :47
r1,2(min) :5
r3,4(min) :4
a :90
Abutment and fillet dimensions (mm)
da(max) :169
db(min) :160
Da(min) :235
Da(max) :283
Db(min) :280
Ca(min) :9
Cb(min) :30
ra(max) :4
rb(max) :3
Value
e :0,83
Y :0,72
Yo :0,4

Tapered roller bearings offer several advantages due to their unique design. They excel in handling both radial and axial loads by distributing these forces evenly across the bearing surfaces. This capability makes them suitable for applications where heavy combined loads and high axial rigidity are required, such as in automotive transmissions and wheel hubs. Tapered roller bearings also provide excellent durability and reliability in harsh operating conditions due to their ability to accommodate misalignment and shaft deflection. Their design minimizes frictional losses, enhancing energy efficiency, while their separable components facilitate easy assembly, disassembly, and maintenance. Overall, tapered roller bearings are valued for their robustness, versatility, and efficiency in demanding industrial and automotive applications.
